Suzuki DF20 Outboard

DESCRIPTION

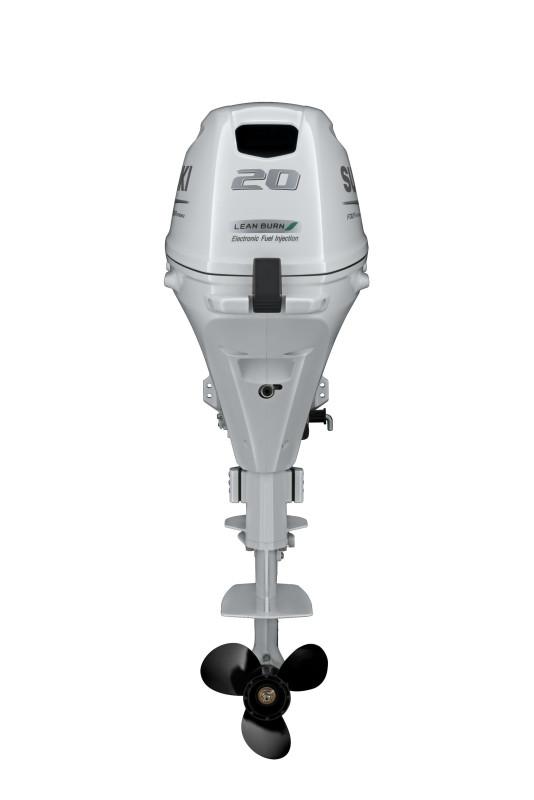

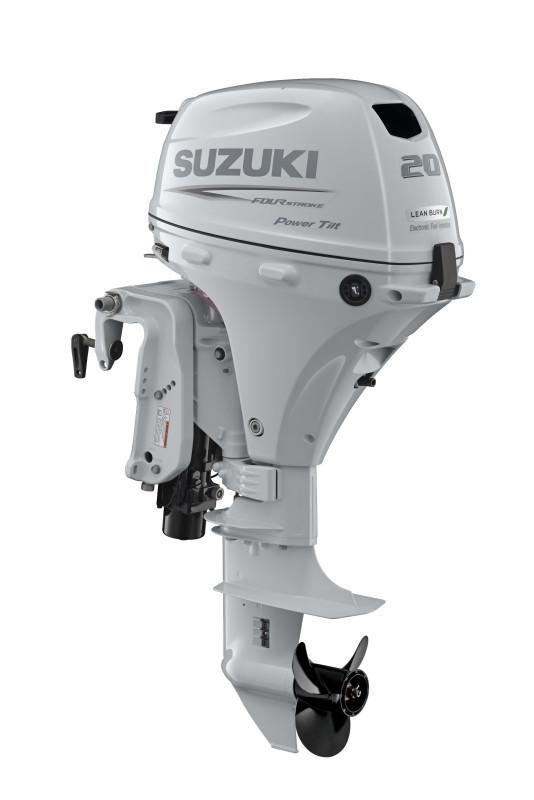

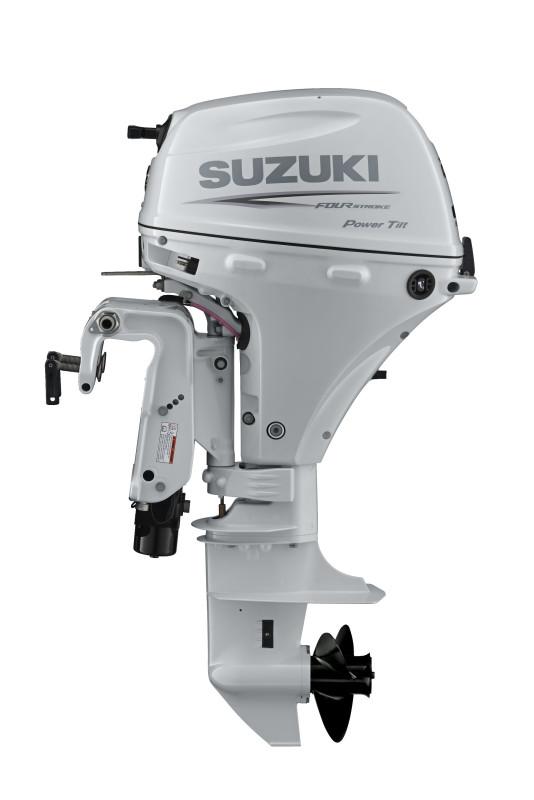

The Suzuki DF20A is a lightweight and technologically advanced 20 horsepower 4-stroke outboard motor, ideal for small to medium-sized boats. Below are its key specifications: White Only

Engine Specifications

• Engine Type: In-line 2-cylinder, 4-stroke, OHC

• Displacement: 327 cm³

• Bore x Stroke: 60.4 mm x 57 mm

• Maximum Output: 14.7 kW (20 PS)

• Full Throttle Operating Range: 5,300 – 6,300 rpm

• Fuel Delivery System: Battery-less Electronic Fuel Injection (EFI)

• Ignition System: Digital CDI

• Alternator Output: 12V 12A (electric start models)

⚙️ Physical Dimensions & Weight

• Transom Heights:

  • Short Shaft (S): 381 mm (15")

  • Long Shaft (L): 508 mm (20")

• Weight:

  • Manual Start:

    • Short Shaft: 44 kg

    • Long Shaft: 45 kg

  • Electric Start:

    • Short Shaft: 48 kg

    • Long Shaft: 49 kg

⚙️ Performance & Features

• Gear Ratio: 2.08:1

• Gear Shift: Forward-Neutral-Reverse

• Trim Method: Manual Trim and Tilt

• Exhaust System: Through Prop Hub Exhaust

• Oil Pan Capacity: 1.0 L

• Fuel Tank Capacity: Optional 12 L portable tank

• Propeller Selection: 3-blade, 7" to 12" pitch
